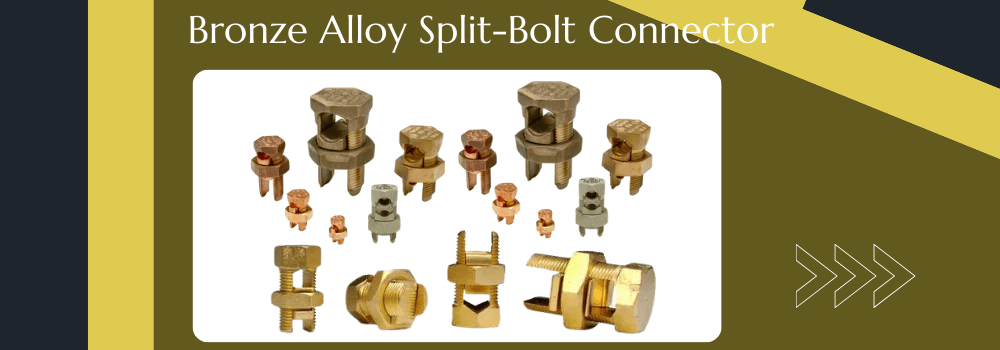

Bronze Alloy Split-Bolt Connector

These Bronze Alloy Split-Bolt Connector square measure made up of high-strength, Corrosion-resistant bronze alloy. Designed for copper to the copper association.Many split bolt connectors are made entirely of copper. Others are made of bronze, copper alloy or bronze alloy. Regardless, you should choose split bolt connectors made of a conductive material. Make sure you choose split bolt connectors in the right size

The split-bolt instrumentality is for copper to copper connections. Bolt and nut square measure fabricated from a high-strength corrosion-resistant bronze alloy.

These high-strength copper alloy split bolt connectors will be used with a spread of solid copper wire, compact, compressed, copper-weld conductors, and rebar. each ‘S’ and ‘SEL’ series copper split bolt connector square measure appropriate for direct burial and is marked with “DB” on the pinnacle for all conductor sizes up to five hundred MCM.

split bolt connector square measure normally listed for under 2 conductors, though some square measure listed for 3 conductors. However, it is a common trade follow to terminate several conductors as potential at intervals of a split-bolt instrumentality, despite the fact that this violates the narcotizing gastroenteritis.

we are add to search split-bolt, split bolt connector, split bolts, electrical split bolt, electrical split bolts, electrical split bolt connector etc.

Operation of Bronze Alloy Split-Bolt Connector:

• Allows connection of one or two taps to single run copper code conductors.
• No special tools are required for installation.
• Wide wire range-taking capability minimizes inventory requirements.
• Copper pressure bar provides high contact pressure between conductors to form solid electrical connection.
• Provides maximum pressure and assures a secure connection on all combinations of run and tap conductors.

Features of Bronze Alloy Split-Bolt Connector:

• Copper pressure bar
• Hex style head

Material:

• BS 2874/Freely cut high quality brass rods
• High Strength Copper Alloy, High Conductive Copper, High Strength Aluminium.

Finishing of Products:

• Split bolt Connectors are rolled out in natural brass. They are also copper coated/electro tin finished/nickel plated. High conductivity copper also used on demand of the customers.

For copper to copper connections

• Bolt and nut of high strength corrosion-resistant bronze alloy
• Pressure bar is copper through 40H; copper alloy is used for 350 kcmil and above
• Bolt and nut of hex design up to 350 kcmil
• CSA certified and UL listed

Benefits of Bronze Alloy Split-Bolt Connector:

• Provides maximum conductivity and a high degree of breakage resistance
• Allows maximum torque to be applied
• Ensures reliability
• UL and CSA Listed.
• Assure high pull out and a secure connection on all combination of conductors.
• Also available in Hex design for position grip and assured torqueing.
• Compressed, Concentric and Copper weld.
• Highly Resistance to corrosion and Cracking.

Application of Bronze Alloy Split-Bolt Connector:

• Prevent galvanic corrosion.
• Used with a high range of solid copper wire, compact, compressed, copper weld conductors, and rebar.
• Suitable for direct burial and for all conductor types.
• Used in electrical power application.
• Connecting conductors for splicing, tapping, terminating, grounding, bonding and direct burial in earth or concrete.
• Suitable for copper to copper, copper to aluminium and aluminium to aluminium connections.
